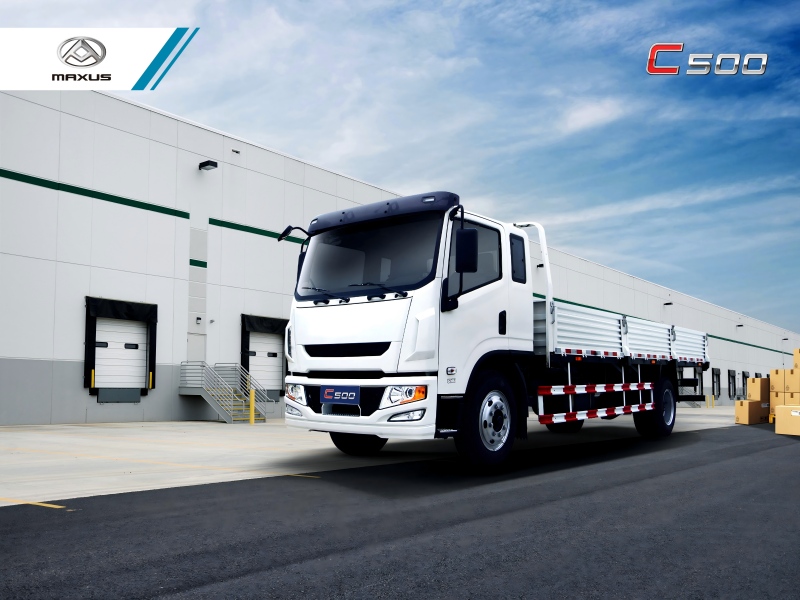

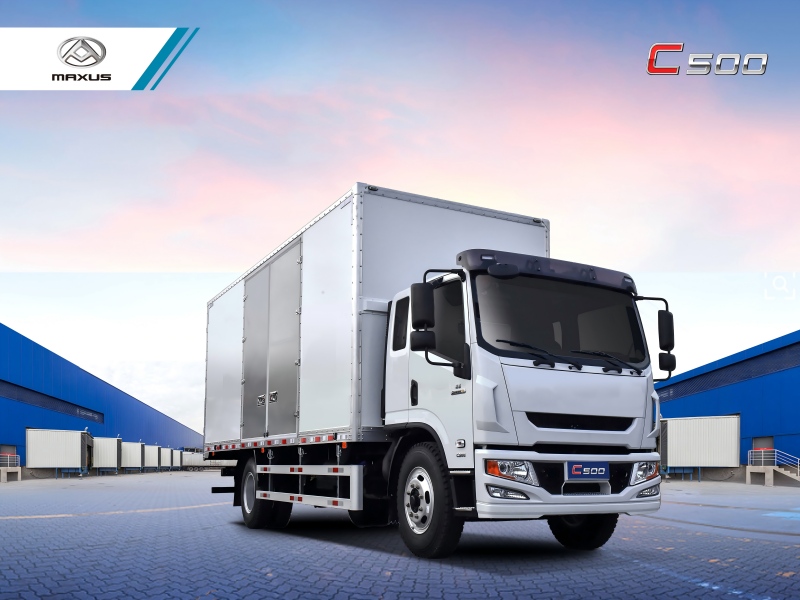

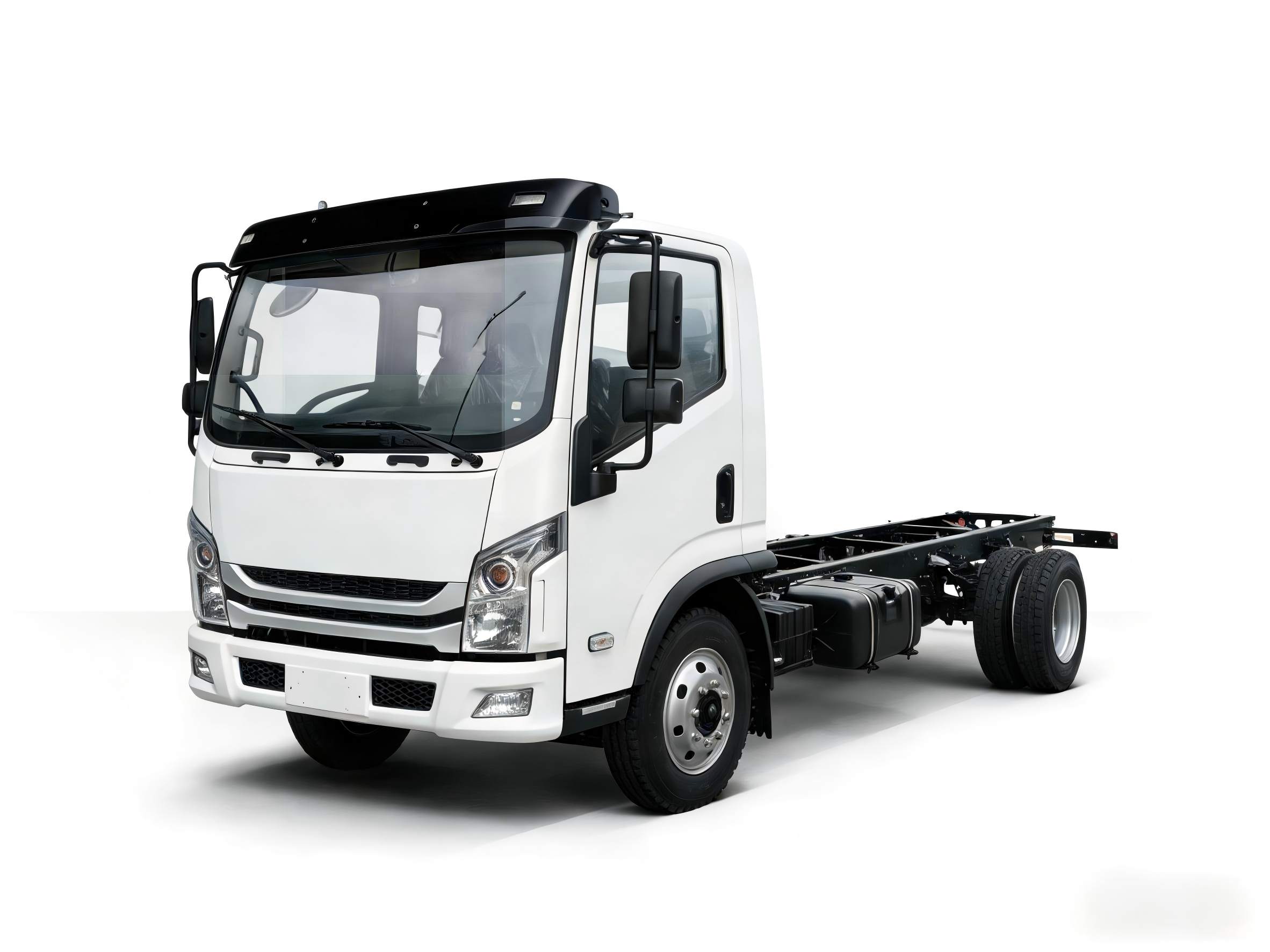

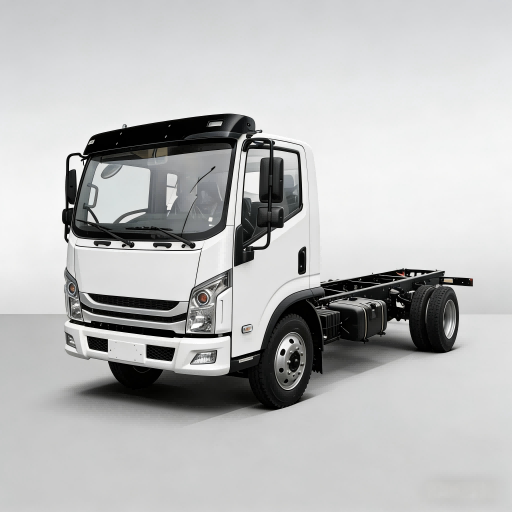

Engineered for serious work, the C500 combines heavy-duty capability with modern technology. With a 13,000 kg GVWR and 8,000 kg payload, it delivers exceptional strength. Powered by a reliable 125kW Cummins Euro V engine and paired with a robust gearbox, it offers dependable performance for demanding logistics.

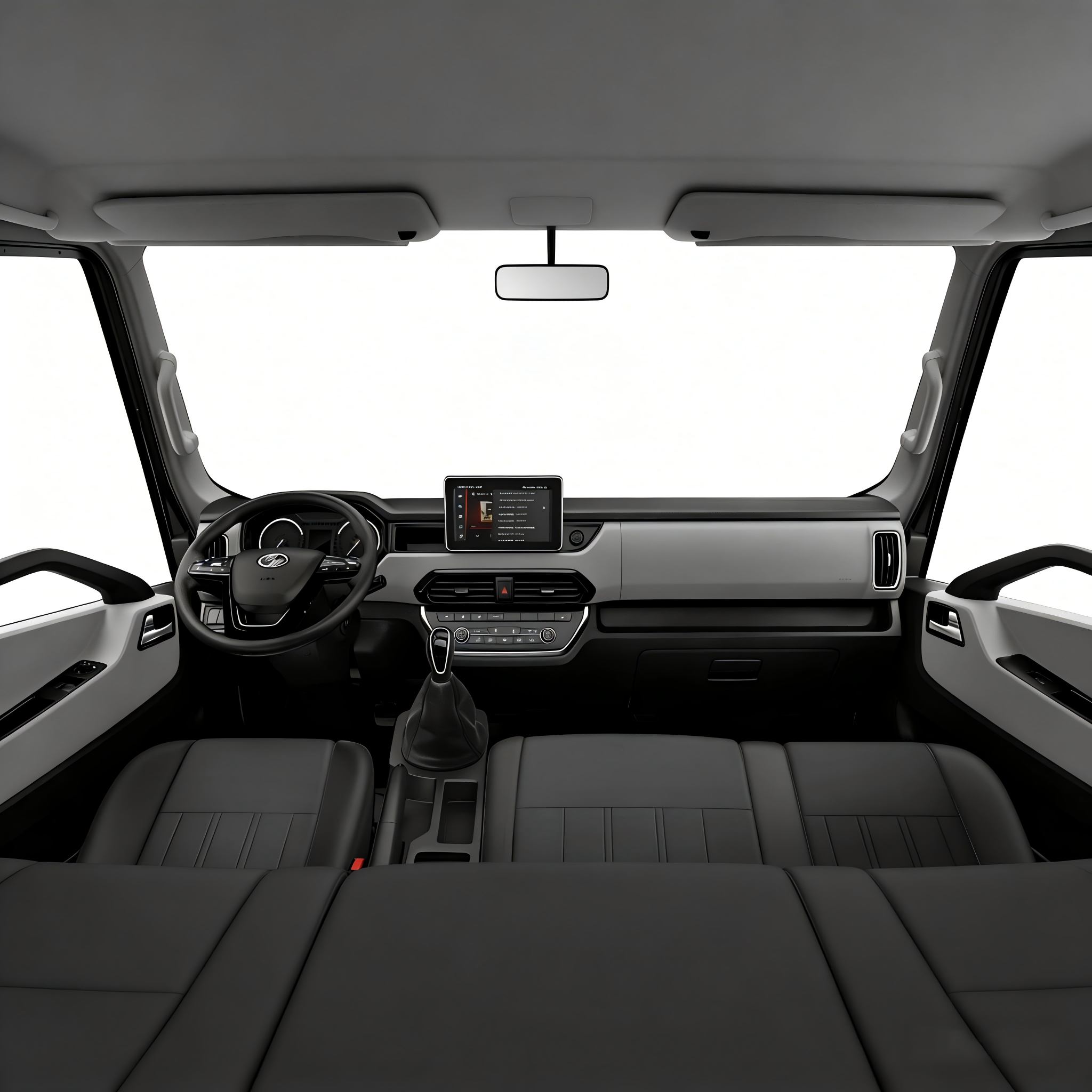

Safety is paramount, featuring a full suite of systems including ABS, ESC, AEBS, LDWS, and Air Brakes. The comfortable King Cab includes A/C, power features, and cruise control. Built on a reinforced chassis with a large 6.2-meter cargo body, the C500 is designed for maximum durability, safety, and efficiency in heavy-duty transport.
G.V.W. (kg) :
13000Payload (kg) :
8000Wheelbase (mm) :
4750Product Overviews
--------------占位---------------

C500 Light Truck: Comprehensive Product Overview
● Engine Performance: Equipped with a 3.8L diesel engine that balances torque and fuel economy.
● Payload Capacity: Engineered to handle a 8000 kg (8 Ton) payload, making it ideal for diverse logistics needs.

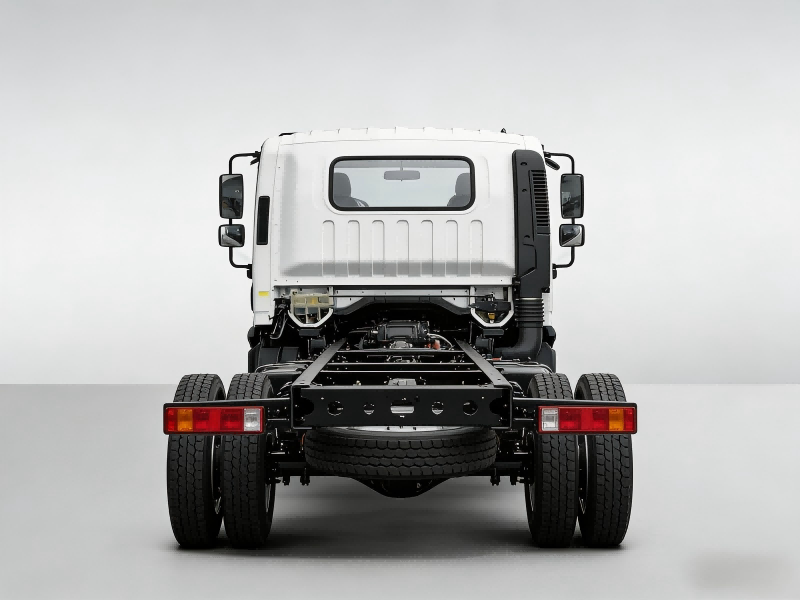

● Robust Chassis: The durable chassis frame is reinforced to resist bending and fatigue under maximum load conditions.
● Suspension System: Designed to maintain stability and balance during both urban deliveries and short-haul highway trips.
--------------占位---------------
Product Details


--------------占位---------------
Product Specifications
| Cab | Type | King Cab (Single cab also available) |
| Tilted | ● | |
| No. of Seats | 3 | |
| Dimension (mm) |
Overall Dimension | 8500*2385*2570 |
| Wheelbase | 4750 | |
| Cargo Body Dimension | 6190*2180*550 | |
| Min. Ground Clearance | 190 | |
| Weight (kg) |
Kerb Weight | 5200 |
| Payload | 8000 | |
| G.V.W. | 13000 | |
| Power | Engine Brand | CUMMINS |
| Engine Model | ISF3.8s5168 | |
| Emission Standard | Euro V (SCR) | |
| Displacement (cc) | 3760 | |
| Engine Power (kW/rpm) | 125/2600 | |
| Engine Torque(N.m/rpm) | 592/1300-1700 | |
| Gearbox Model | WLY6G120 | |
| Gearbox Torque(N.m) | 700 | |
| Max. Speed (km/hr) | 105 | |
| Max. Climb Ability(%) | 30 | |
| Loading | Chassis Frame Section Dimension(mm) | 230*75*(6+5) |
| Suspension | FR & RR Leaf Spring, 9/9+8 | |
| FR & RR Axle Payload | 4T/7T | |
| Tire Size | 8.25R20-16PR | |
| Safety | Service Brake Type | Air Brake |
| Parking Brake Type | Air Brake | |
| Exhaust Assistant Brake | ● | |
| ABS | ● | |
| ESC | ● | |
| AEBS | ● | |
| LDWS | ● | |
| Front Disc Brake | ● | |
| Comfort | A/C | ● |
| Power Steering | ● | |
| Power Window | ● | |
| Central Lock & Remote Control | ● | |
| Cruise Control | ● | |
| Others | Front Horizontal Stability Bar | ● |
| Reverse Sensor | ● | |
| Electric Heating Rearview Mirror | ● | |
| Voltage | 24V | |
| Fuel Tank Volume | 160L |
